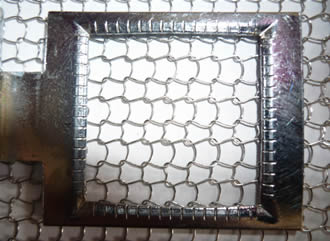

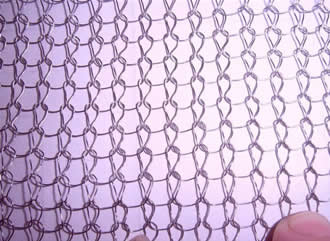

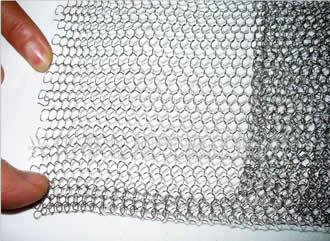

Knitted Mesh
Knitted mesh is made of either crochet or knitting of various wire materials including stainless steel, copper, synthetic fiber and other materials.
Material: stainless steel wire, galvanized wire, titanium wire, Monel wire, phosphorus copper wire, nickel wire, nylon yarn, polyester yarn, F46 wire, polyethylene wire, metal wire etc.
Wire dia: 0.10mm-0.55mm (commonly used:0.2-0.25mm)
Application: vibration & shock absorption, air & liquid filtration, noise suppression, gasketing & sealing ,heat transfer & insulatio. Suitable for petroleum, chemicals, industries, medicine, metallurgy, machinery, shipbuilding, automobile, tractor industries such as distillation, evaporation, filtration process, to remove entrained in the steam or gas and liquid droplets in the foam, and used as automobile and tractor air filter.
Knitted wire mesh products are applied to those applications including cryogenic, high temperature, corrosive atmosphere, heat conductive, high usage, or special service applications.
 |  | |
 |  |
model | Hole amount and width | Wire diameter (mm) | Materials | Weigth (kg/m2) |
Standard type | 40-100 | 0.1*0.4 | 1Cr18Ni9 | 1/0.5 |
60-180 | 0.1*0.4 | 1Cr18Ni9 | 1/0.5 | |
140-400 | 0.1*0.4 | 1Cr18Ni9 | 1/0.5 | |
40-100 | 0.27 | Galvanized. Lead wire | 1/0.7 | |
40-100 | 0.1*0.4 | Red copper wire | 1/0.7 | |
40-100 | 0.25 | Polyamide yarns | 1/0.7 | |
40-100 | 0.2 | Polyethyline wire | 1/0.7 | |
40-100 | 0.2 | Polypropylene wire | 1/0.7 | |
Efficient type | 60-100 | 0.15 | Polypropylene wire | 1/0.7 |
70-100 | 0.1*0.3 | Stainless steel wire | 1/0.6 | |
80-100 | 0.1*0.3 | Stainless steel wire | 1/0.6 | |
90-150 | 0.1*0.3 | Stainless steel wire | 1/0.6 | |
200-400 | 0.1*0.3 | Stainless steel wire | 1/0.6 | |
60-100 | 0.1*0.5 | Stainless steel wire | 1/0.6 | |
80-100 | 0.1*0.5 | Polyamide yarns | 1/0.6 | |
High weaving type | 20-160 | 0.1*0.4 | Polyamide yarns | 1/0.4 |
30-150 | 0.1*0.4 | Stainless steel wire | 1/0.4 | |
70-400 | 0.1*0.4 | Stainless steel wire | 1/0.4 |
